Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet

Name: Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Brand: LOVO
Price: 4900 USD

Delivery Time : 20-30Workday

application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles

Place of Origin : China

Packaging Details : Wooden crate packaging or fixed frame

automatic grade : Automatic

Boxing : Boxing

core components : PLC

Weight (KG) : 1500

driven type : Electric

machinery test report : Provided

dimension(l*w*h) : 1800*1600*1800

Certification : CE

Brand Name : LOVO

MOQ : 1

Price : 4900-5700

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : Shipment can be made within 30 days of receiving the deposit

Model Number : P-500

Filling Material : Solid

Voltage : 220 V

Contact Now

Horizontal Multi-function Automatic Pillow Flow Film Pouch Paper Facial Lundry Hotel Toilet Small Scale Soap Bar Wrapping

Machine Introduction

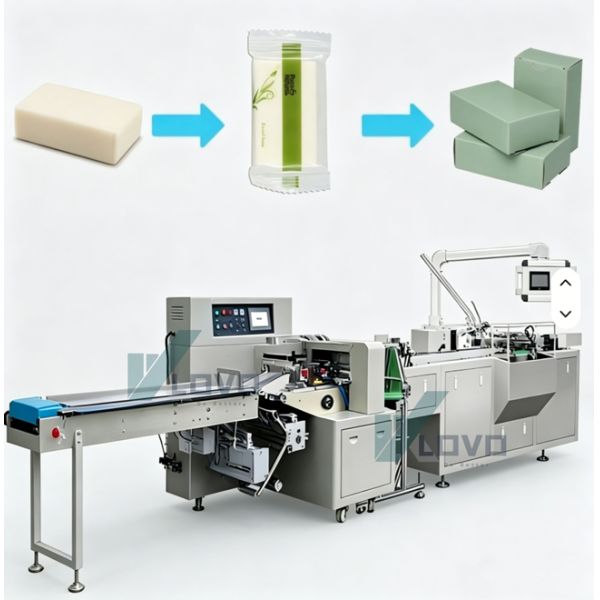

This integrated packaging system combines a flow pack machine and an automatic cartoning machine into a seamless, end-to-end production line. Functionally, the flow pack unit first encapsulates products in protective plastic film wrappers, after which an automated transfer system conveys these packaged units directly into the feeding zone of the cartoning machine. The cartoning module then precisely loads the flow-packed products into pre-formed boxes or cartons, completing the secondary packaging stage without manual intervention. This continuous workflow—from primary film wrapping to final boxed presentation—is engineered for high-speed operation across diverse industries including food & beverage (snacks, confectionery, bakery items), health products (blister packs, sachets), cosmetics (tubes, compacts), and consumer goods (electronics, hardware). The line's core advantages include significant labor reduction through complete automation, minimized product handling for enhanced hygiene and damage prevention, optimized floor space utilization via compact integration, consistent packaging quality through synchronized operation, and scalable throughput capabilities to meet varying production demands.

Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet

Model	DS-100	DS-120	DS-250
Packing Speed	40~60 boxes/min	30~50 boxes/min	30~50 boxes/min
Box Size	L:60~220mm	L:80~250mm	L:150~320mm
	W:20~125mm	W:100~160mm	W:100~180mm
	H:15~60mm	H:40~90mm	H:90~110mm
Air Consumption	≥0.6 mpa, 20 m³/h
Power Supply	220V/380V, 50HZ
Machine Power	4.5KW	5.5KW	6.5KW
Machine Size	342513901771mm	345014501800mm	420016501850mm
Machine Weight	1200KG	1600KG	2500KG

Machine Details

Forming, filling and sealing device

A. Bag former: adjustable size bag former, adjust bag length and width according to product size. B. Middle heat sealing device: independent temperature controlled sealing device, can quickly and stably seal the packaging film.

Rotary Cutter Device

The high-speed rotating cutter cuts the bag while sealing at high temperature to complete the packaging.

HMI Control System

Touch screen panel for parameter adjustments and monitoring.

Carton Magazine

Stores flat cartons and feeds them one by one.

Carton Handling & Product Loading System

A. Carton Erecting Unit: Vacuum suction cup device unfolds flat cartons into 3D shapes.

B. Pusher Plates Insertion Mechanism: For high-speed insertion of standardized products into cartons.

Leaflet/Foam Insertion (Optional): Adds instructions, leaflets, or cushioning materials.

Carton Folding & Product Closing System

Carton Transport Chain: Moves erected cartons through subsequent stages.

C. Flap Folding Units: Pre-Folding: Partially closes carton flaps.
Final Folding: Secures flaps into final position.

D. Sealing Mechanism: Glue Sealing: Hot melt glue nozzles or cold glue applicators.

Tuck-In Closure: Mechanical tuckers for glue-free sealing.

Carton Rejection & Output System

E. Output Conveyor: Transfers finished cartons to downstream equipment.

Defect Rejection Unit: Removes faulty cartons.

Counter & Batching: Tracks production volume and groups cartons into batches.

Get Your Tailored Packaging Solution!

To recommend the optimal machine and provide a fast quote, please share:

1. Share your product information with us: product type, pictures and sizes.

2. Confirm your box type and size.

Straight Tuck Box (ST)

FAQ

1. What types of soap bars can this machine wrap?

This machine wraps facial soap bars, laundry soap bars, hotel soap bars, and toilet soap bars. It handles both small guest-size bars (20-50g) and larger laundry bars (100-300g) with adjustable settings.

2. Can this machine use both plastic film and paper pouches?

Yes, this is a multi-function machine that works with both plastic flow wrap film (OPP/PE) and paper packaging materials. You can switch between materials based on your product requirements.

3. What is the wrapping speed for small scale production?

The wrapping speed is adjustable, typically 20–60 packs per minute depending on soap bar size and wrapping material. This range is ideal for small to medium scale production.

4. How do I change the bag size for different soap bars?

Bag size change takes 5–10 minutes. Adjust the forming tube, sealing jaws, and film roll width via the control panel and simple mechanical adjustments. No special tools required.

5. Is this machine suitable for a small soap business startup?

Absolutely. This machine is designed for small scale production – it is compact, affordable, easy to operate, and handles multiple soap types. Perfect for craft soap makers and small hotel soap suppliers.
